Konica Minolta bizhub press 2250p professional printer

bizhub PRESS 2250P

Black & white production speed of 250 A4 or 140 A3 duplex pages per minute or 125 A4 / 70 A3 simplex pages per minute
High print quality with 1,200 x 1,200 dpi resolution and dual-engine technology with precise front-to-back registration accuracy and image density adjustment
Intelligent paper catalogue and media weights of 40 to 350 gsm also for duplex printing
Schedule management for detailed overview of suspended and reserved jobs for convenient system operation

Kontaktirajte nas

Da li ste zainteresovani da vidite sve funkcije i opcije i izgradite svoj bizhub PRESS 2250P?

Konfigurišite svoj uređaj ovde

Karakteristike

bizhub PRESS 2250P

Print providers and CRDs in the high-end production environment require highly productive and efficient print systems. The bizhub PRESS 2250P fulfils these expectations with highest duplex speed paired with reliabililty, flexibility and outstanding print quality. The 2250P has been developed to produce an extensive variety of print products within the shortest time. It is the perfect partner to fulfil today's requirements of high-end production environments.

Finishing options
Finishing options
- 6 different folding modes
- Hole punching
- Multi (GBC) punching
- Booklet making
- Perfect binding
Large stacking unit
- Up to 3 units in a row
- Up to 15,000 sheets output capacity
Monochrome press
- Up to 250 ipm A4
- Up to 137 ipm SRA3
- Dual-engine technology with superb front to back registration
- Automatic density adjustment
Optional heating unit

For improved feeding of offset and coated paper

Paper handling
- Air-suction or air-assist feeding technology
- Up to 18,000 sheets paper input capacity or 14,000 sheets paper supply plus post insertion for 5,000 sheets
- Up to 11 paper input trays
Print controller
- Convenient operation, especially thanks to high-end paper catalogue functionality
- Schedule function for detailed overview of queued jobs
Simitri® HD Toner
- For highest quality on par with offset
- For enormous media flexibility

Specifikacije i preuzimanja

Specifikacije

Printer specifications
System specifications
Controller specifications
Accessories

Print speed A4 Duplex: up to 250 ipm / Simplex: up to 125 ppm
Print speed A3 Duplex: up to 140 ipm / Simplex: up to 70 ppm
Print resolution 1,200 x 1,200 dpi

Paper weight 40-350 gsm
Paper sizes Min.: 95 x 139 mm;Max.: 324 x 483 mm (with PF-703)
Maximum image area 314 x 483 mm (with PF-703)
Maximum paper input capacity Max.: 18,000 sheets; main unit: up to 3,000 sheets
Maximum paper output capacity Max.: 15,000 sheets (plus sub trays)
Main unit dimensions (W x D x H) 3,500 x 910 x 1,454 mm;
(Mainbody 1 + RU-510 + TD-501 + Mainbody 2 + RU-509 + RU-510)
Main unit weight 890 kg

Type 1 Embedded Konica Minolta controller

Paper feed unit Paper feed unit PF-706
3 magazines; paper capacity: up to 6,000 sheets; paper weight: 40-350 gsm; standard paper sizes: A5 to A3+ (SRA3); min. paper size: 95 x 139 mm; max. paper size: 324 x 463 mm;
optional preprinted paper feed kit PP-701 available
Paper feed unit PF-703
3 magazines with air-suction technology; paper capacity: up to 5,000 sheets; paper weight: 40-350 gsm; standard paper sizes: A5 to A3+; min. paper size: 95 x 139 mm; max. paper size: 324 x 483 mm;
optional heating unit HT-505 available
Folding and punching unit Folding and punching unit FD-503
Preprinted sheet insertion (PI): 2 PI trays for 500 sheets each punching (2 and 4 hole); folding (half-fold, Z-fold, gate-fold, letter fold-in, letter fold-out, double-parallel-fold); sub tray for up to 200 sheets
Relay unit Relay unit RU-510
Sheet reverser; adapts processing speed to 125 ppm
Relay unit RU-509
Mechanical decurling;Â Colour density control
Multi (GBC) punching unit Multi (GBC) punching unit GP-501
Multi punching of A4 sheets; user replaceable die sets for: velo bind, plastic comb, wire bind, colour coil, pro click; paper weight: 75-216 gsm
Auto ring binder Auto ring binder GP-502
Stacking, punching and binding of books, up to 102 sheets;
self-adjusting bind elements (one size fits all);
paper weight: content 75-120 gsm; cover 163-216 gsm
Booklet making unit Booklet making unit SD-506
Booklet making of up to 50 sheets (200 images); saddle stitching, trimming; output tray for up to 50 booklets; sub tray for up to 200 sheets; Multi-letter fold-in (up to 5 sheets); multi-half-fold (up to 5 sheets)
Booklet making unit SD-513
The SD-513 offers fully automated
creasing, three edge trimming and spine corner forming, helping to
reduce delivery times and freeing up staff for increased productivity.
Watkiss Powersquare 224KR
Booklet making of up to 56 sheets (224 images); Stitching, folding, spine forming and trimming.
Stacking unit Stacking unit LS-506
Up to 5,000 sheets stacking capacity; trolley mounted stacker; auto-shift stacking; sub tray for up to 200 sheets; paper clamp mechanism
Stacking unit LS-505
Up to 5,000 sheets stacking capacity; up to three units can be installed; up to 15,000 sheets stacking capacity; trolley mounted stacker; auto-shift stacking;sub tray for up to 200 sheets; paper clamp mechanism
Perfect binding unit Perfect binding unit PB-503
Hot melt glue binding system; integrated 1-side trimming of cover sheets; books from A5 up to A4+ (307 x 221 mm); books from 10 sheets up to 30 mm spine width; cover paper tray for up to 1,000 sheets; sub tray for up to 200 sheets; book stacking capacity; 3,300 sheets; (2 stacks)
Stapling unit Stapling unit FS-532
Stapling of up to 100 sheets; two-point and corner stapling; variable staple length (cutting mechanism); output for up to 4,200 sheets (A4); sub tray for up to 200 sheets; auto-shift sorting and grouping
Saddle stitching kit Saddle stitching kit SD-510 (for FS-532)
Booklet making of up to 20 sheets (80 images); saddle stitching; cover sheets from 50 to 300 gsm; output tray for booklets; multi-letter fold-in (up to 5 sheets); multi-half-fold (up to 5 sheets)
Booklet finisher Saddle stitching kit SD-510 (for FS-532)
Booklet making of up to 20 sheets (80 images); saddle stitching; cover sheets from 50 to 300 gsm; output tray for booklets; multi-letter fold-in (up to 3 sheets); multi-half-fold (up to 5 sheets)
Punch kit Punch kit PK-522 (for FS-532)
Punching (2 and 4 holes selectable)
Humidifier unit Humidifier unit HM-102
Humidification decurler
Tandem relay unit TD-501
Post inserting unit PI-PFU
Mount Kit for 3rd party MK-737
Removable HDD kit RH-101
HD-511

All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.
All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.
The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that all specifications mentioned will be error-free.
Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Preuzimanja

Media Guide

Preuzmite brošuru o proizvodu kako biste imali sve informacije na jednom mestu.

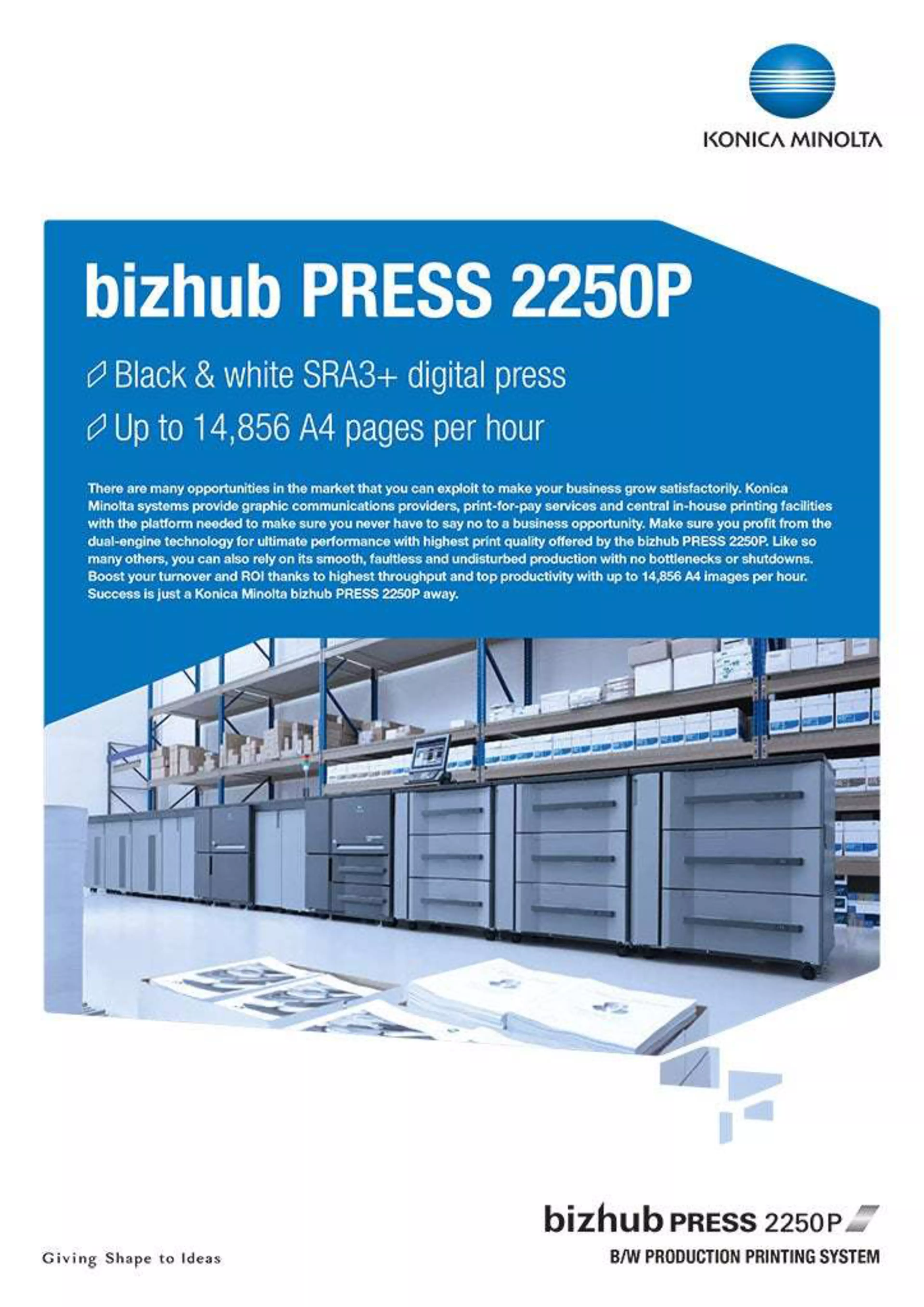

bizhub PRESS 2250P brošura
