Meteor Unlimited Colors Se+

Višenamensko digitalno linijsko rešenje za štampanje sa tonerom i nanošenje folije
Pametna kombinacija CMYK štampanja i linijskog nanošenja folije
Omogućava vam da dodate vrednost standardnim zadacima štampe
Pruža izvanrednu produktivnost, sjajan kvalitet slike i iznenađujuću jednostavnost korišćenja

Karakteristike

Nove ciljne grupe zahvaljujući inovativnom, višenamenskom rešenju za štampanje i nanošenje folije

Meteor Unlimited Colors Se+ je jedini proizvod na tržištu koji kombinuje mašinu za štampanje sa vrhunskim rešenjem za nanošenje folije. Sada možete da kombinujete vrhunsko CMYK štampanje sa primamljivim dekorativnim efektima kako biste pokrili potpuno novu ciljnu grupu i pravili vrhunske proizvode koji pružaju vrhunske marže. Meteor Unlimited Colors Se+ pruža izvanrednu produktivnost, neverovatnu kombinaciju tonera i folije i mogućnost kreiranja sjajnih, izuzetno isplativih metalik efekata u jednom prolazu. Ovo digitalno rešenje predstavlja korak kompanije Konica Minolta izvan CMYK štampanja i idealno je za štamparije koje traže način da istaknu svoje usluge štampe i kreiraju neograničene metalik boje

Specifikacije i preuzimanja

Specifikacije

METEOR DP8700Se+ 4-COLOR PRINTING
Colour print speed	Up to 71⁽¹⁾ A4 sheets per minute
Print quality and line screens	Print resolution up to 3,600 dpi and line screens ranging from 130 to 270 lpi
Printable formats	Min. 100 x 148 mm – 3.9 x 5.8’’ Max. 330 x 650* mm – 13 x 25,6’’⁽²⁾
Supported substrate thicknesses	Paper from 65 to 350 g/m² or 350 μm Synthetic: specific substrats such as Teslin® and Folex® Envelope from 100 to 400 μm with/without window
Paper input	2 Internal Trays (trays #1, #2) 1,500 sheets total capacity (500 + 1,000 sheets) 3 trays (#3, #4, #5) linking high capacity feeder with air feed system 3,930 sheet total capacity 2 x 1.390 + 1.150⁽²⁾. Max. size is 330 x 650* mm from tray #5, otherwise 330 x 487 mm
Registration	Precise registration with ASCA (Automated Skew and Centering Adjustment) system. Comparable to offset, applies to all printed works (front-back, page-page at ± 0.5 mm)
Paper output	High pile motorized stacker for hosting up to 60 cm of paper height
Electrical specifications	Feeder: 1x (230V / 1P + N + E - 10 A) Printer: 1x (230V / 1P + N + E - 25 A) Computer & Rip: 3x 1x (230V / 1P + N + E - 16 A)
Operating environment	Required temperatures:18° to 30°C Optimum between: 20° to 22°C Operating Humidity: 30% to 50% RH Optimal condition: 40%
Dimensions & weight	L x W x H: 5,56 x 1,31 x 1,93 meters 1,780 kg (Meteor DP8700 Se+ and iFOIL T)
External Fiery EFI Fiery IC-308 controller	100% compatible with market standard software solutions like Adobe InDesign

IFOIL-T HOT FOILING STATION
Supported thicknesses with foil without toner overprinting	Min. 80 g/m² equals to 80 μm prior to printing and possible lamination Max. 350 g/m² equals to 350 μm prior to printing and possible lamination
Supported thicknesses with foil and toner overprinting	Min. 150 g/m² equals to 150 μm prior to printing and possible lamination Max. 350 g/m² equals to 350 μm prior to printing and possible lamination
Printing speed	Up to 50⁽¹⁾ A4 sheets per minute
Paper formats	Min. 110 x 220 mm Max. 330 x 650* mm⁽²⁾
Substrats	The hot foil process is compatible with most the of substrates supported by the METEOR Digital Press (non-coated or coated paper, envelops, PVC, Teslin, etc.)
Hot foils	Utilizes compatible hot foils available on the market.⁽³⁾
Rolls	Hot foil are delivered on rolls. Standard roll is 320 mm width and 305 meter long, using an one inch core. Possibility to use smaller widths such as 100 mm and add them upon the same axis for laying up to 2 simultaneous colours. Standard 1’’ core, 3‘‘ core as an option
Foil manager software suite	Meteor Manager is a powerful supervision softwareplatform. Within a single tool, it gives access to the operator to the entire parameter to manage and setup the productionfrom 4-color printing through hot foil finishing. All the parameters can be also stored for further reprinting whichsaves you time and improves your efficiency
Electrical specifications	iFOIL T: 2x (230V / 1P + N + E - 25 A) 1x (230V / 1P + N + E - 16 A) Stacker: 1x (230V / 1P + N + E - 6 A)
Operating environment	Required temperatures:18° to 30°C Optimum between: 20° to 22°C Operating Humidity: 30% to 50% RH Optimal condition: 40%
Dimensions & weight	L x W x H: 5,56 x 1,31 x 1,93 meters 1,780 kg (Meteor DP8700 Se+ and iFOIL T)

All specifications refer to A4-size paper of 80 g/m² quality.

⁽¹⁾ Print speed may vary according to the substrate and print parameter used
⁽²⁾ Using tray #5 and max. 250 gsm/250 μ in simplex
⁽³⁾ Please contact Konica Minolta to check your substrates/toner/foil compatibility

The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that all specifications mentioned will be error-free.
Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

⁽¹⁾ Without calibration and stabilization
⁽²⁾ Using tray #5 and max. 250 gsm/ 250 μ in simplex

Preuzmite brošuru o proizvodu kako biste dobili sve informacije.

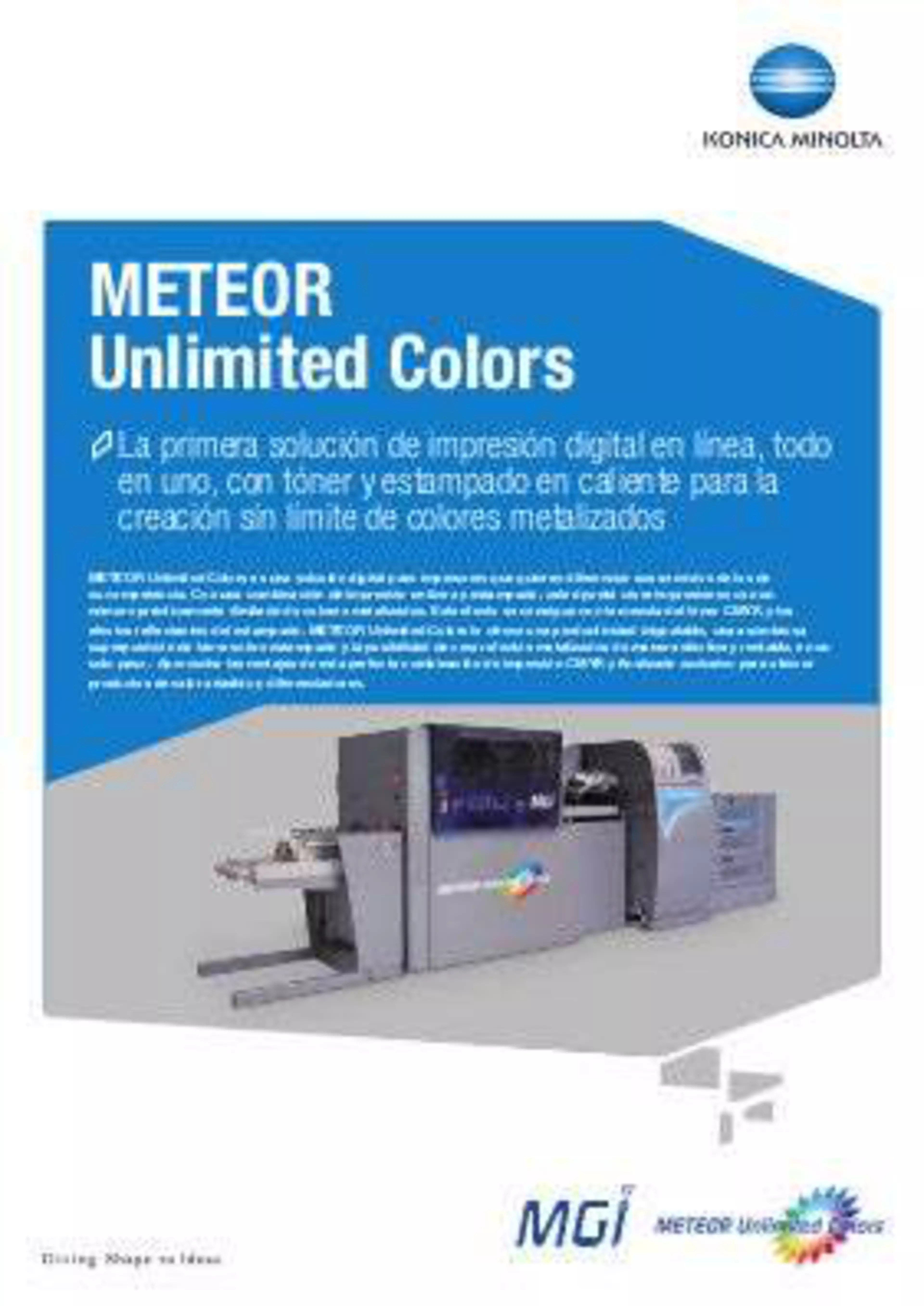

Meteor Unlimited Colors Se+ brošura
